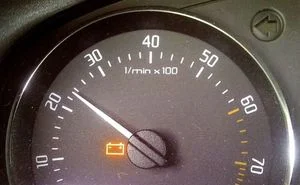

Why Is the car battery light on

Battery charging lamp lights on — it means that the alternator is not working or the car battery is out of order. This is the first thought of a car owner when he saw the battery icon on the dashboard. However, the reason why the charge indicator lights on may be much simpler. Most often the battery indicator signals a loose alternator belt or poor terminal contact (insufficient fastening or oxidation).

If the problem turns out to be in the alternator (how to determine this will be described below), in most cases it's because of a faulty diode bridge or voltage regulator.

If the battery light is on when the engine is working, the first thing you should do is to check the voltage on the battery terminals with a multimeter, and after turning off the ignition to make sure that the terminals are secure and in good condition. The table below describes how to determine the cause of the malfunction.

Situation when a fault occursThe assembly that caused the faultPossible causes of failure
Battery lamp lights up during ignition-At the moment of starting the engine, while the ignition is turned on, the battery warning light should light on for 1...2 seconds and then turn off. If it continues to glow, additional diagnostics are required.
Battery light does not go offAlternator
  • Poor tension of the alternator belt;
  • significant wear or complete breakage of alternator belt;
  • wear of brush unit, worn alternator brushes;
  • Problems with voltage regulator;
  • diode bridge fully or partially failed;
  • Wear (seizure, backlash) of pulley bearings;
  • bad alternator output contact;
  • bad contact at the alternator «ground»;
  • breakage of alternator winding.
Battery
  • complete or partial failure of the battery;
  • low electrolyte level in the battery;
  • oxidation of the battery terminals;
  • problems with battery wiring.
Battery charging lamp lights on periodicallyAlternator
  • bad contact at the alternator output;
  • bad contact at the alternator «ground»;
  • loose belt.
Charging lamp lights up dimlyWiring
  • The wire from the alternator to the battery is damaged;
  • bad contact on voltage regulator.
Alternator
  • Open or bad output contact on one of the alternator phases;
  • failure of one or more diodes;
  • soldering failure in diode rectifier bridge.
Battery lamp blinksAlternator
  • Damage to the alternator output contact;
  • The ground contact of the alternator is damaged;
  • The lead to the battery is damaged.
Battery lamp lights up at idle (low rpm)Alternator
  • Poor tension of the alternator belt;
  • significant wear or complete breakage of the alternator belt;
  • Wear of the brush unit, worn alternator brushes;
  • Problems with voltage regulator;
  • diode bridge fully or partially out of order;
  • Wear of pulley bearings;
  • bad alternator output contact;
  • bad contact at the alternator «ground»;
  • breakage of alternator winding.
Battery
  • complete or partial failure of the battery;
  • low electrolyte level in the battery;
  • oxidation of the battery terminals;
  • problems with battery wiring.
Battery light is on and goes out after bending the throttleAlternator
  • One of the alternator phases is broken or the output contact is damaged;
  • Failure of one or more diodes;
  • damage to the soldering of diodes.
  • Belt slipping.
Signal lampThe use of LED lamps instead of incandescent lamps in cars where the use of incandescent lamps is provided.
Battery lamp lights on when drivingAlternator
  • worn brushes;
  • Backlash and vibration of the alternator pulley bearings and/or idler pulley;
  • Breakage of output contact or earth contact;
  • damage to the alternator to battery cable;
  • Critical damage or breakage of the alternator belt.
BatteryPartial or complete failure of the battery, its critical discharge.
Battery lamp lights on after a cold startAlternator
  • One of the alternator phases is broken or the output contact is damaged;
  • Failure of one or more diodes;
  • damaged soldering of diodes.
  • Poor belt tension.
The light is on, charging is onAlternator
  • Problems with the voltage regulator.
Signal lamp
  • damage to the signal lamp wiring (its insulation);
  • Contact in the connector of the mounting block is broken.
Battery
  • complete or partial failure of the battery;
  • low electrolyte level in the battery;
  • oxidation of the battery terminals;
  • problems with battery wiring.

Causes why the battery lamp is illuminated

Five Problems Cause Battery Warning Light on Dashboard: video

Causes why is the battery light on in my car may be as follows:

  1. problems with the operation of the alternator;
  2. Battery malfunction;
  3. A section of the cable from the battery to the alternator is damaged.

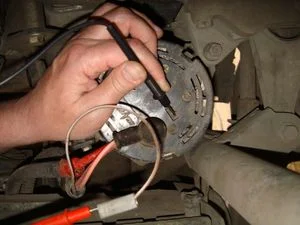

Alternator malfunction

The drive belt is loose or has broken. This problem will be accompanied by other related problems (dim light, difficult starting, creaking or whistling under the hood).

Failure of voltage regulator relay. Since the task of this node is to limit the voltage transmitted from the generator to the battery at 14.4V, when it fails, voltage to the battery terminals does not come at all (if the belt is intact, then with other problems it may come, but be insufficient).

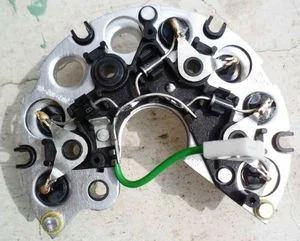

Diode bridge burned out (failure of at least one diode). The alternator can either not deliver any current at all, or generate too little.

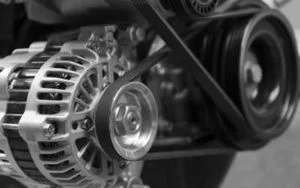

The drive belt is loose

Breakage of one of the phases of the alternator winding (circuit breakage). This usually occurs with contacts that are connected with a bolted connection. In particular, the bolt can unscrew over time and break the contact between one of the phases and the diode rectifier. Circuit failure is also possible if both power diodes in the rectifier unit fail. This can also be the case with alternators where the contacts are not bolted together, but soldered together. Pay attention that in this case the emergency lamp with battery on the dashboard will be glowing at half intensity. And when the engine revs are added, it will stop glowing.

Bad contact on the alternator. Despite the fact that the terminal connection, where the output wires of the alternator are connected, is mechanically protected (usually by a cap or similar device) often over time, the contacts can oxidize, dirt and/or oil can get on them. All of this leads to poor contact and reduced conductivity. The same reasoning applies to the ground contacts. If the «minus» is bad, the battery will not get a proper charge, and accordingly, the battery icon on the dashboard lights up.

Also, in addition to these basic malfunctions of the alternator, there may be wear of the brushes, which leads to the generation of electricity with low voltage, or wear of the alternator pulley bearings, which leads to both slippage of the belt, its wear and tear.

The problem with the car battery

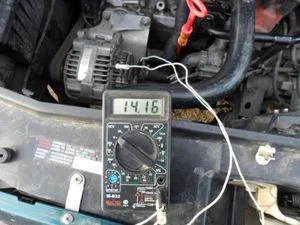

Checking the battery with a multimeter

The battery icon on the dashboard lights on when the battery simply can't take a charge. The first reason for this — the age of the battery or its partial failure. As a variant — low level of electrolyte in it. The second reason — oxidation of the terminals and contacts to it or contamination of the surfaces.

To understand the problem with the alternator or battery, do some tests with a multimeter on the battery. Check the voltage across its terminals, and make sure it can hold a load (you can connect a 55 watt car light to the battery terminals and watch the voltage reading on the multimeter to see how fast it drops).

Wiring problems

When the light bulb lights up at half current or even dimmer, and in a variety of situations, the problem is usually in the wiring. With fractures, damaged insulation starts to glow a little, even with a slight load on the battery.

Likewise, the battery light may be on at half load due to a bad contact on the voltage regulator. The bad contact may be due to corrosion or mechanical damage.

Diagnosing and fixing the problem

The first thing, what to do when the dashboard battery light comes on, is to check whether the battery is not getting a charge or the light is on but there is a charge.

In road conditions, when there is no multimeter at hand, it can be done according to the following algorithm… In the dark time of the day in case of operation of the car only from the battery with time it will be seen that the headlight, instrument illumination on the panel, as well as internal lights start to shine more dimly with time.

Another method of checking the alternator is as follows, which absolutely everyone can do:

  • Start the engine and turn on the load on the battery, such as headlights or seat/window heating.
  • Open the hood and disconnect the negative battery terminal (usually screwed on with a 10 mm wrench).
  • If the engine continues to run properly, the headlights are not out and there are no other changes in the car operation, it means that the alternator is working.
  • If the engine stalls and the headlights go out, then the alternator is out of order and you need to diagnose it.

For a more detailed check you will need a multimeter:

  • Check the condition and tension of the alternator drive belt. The tension force should be such that you can manually turn it 90° (that is, put it upright), but no more. In addition, the belt must be dry and free of moisture and process fluids on its surface (both external and internal).
  • Check the battery voltage in static condition. After stopping the engine, the corresponding value should be about 12...13 volts. If the voltage is lower, check the alternator.
  • Measure the voltage at warm-up rpm. To do this, you need to warm the car, and already at reduced idle rpm measure the voltage. Its value should be in the range of 13,8...14,5 Volt. If it is less than that, it means undercharging, if it is higher — overcharging.
  • Increase the engine rpm to 2000...3000 rpm. Make sure the battery voltage does not exceed 14.5 volts. Otherwise you need to check the voltage regulator.
  • When the engine works at idle rpm you need to switch on the consumers — high beam headlights, heated rear window, radio. At the same time the battery voltage must not drop below 13.8 volts.

If when checking the voltage value on the battery is within the described limits, and the lamp is on, it means false triggering and it is necessary to perform diagnostics of the car electrical system.

If measurements showed that the voltage on the battery is about 12.6… 12.7 volts and drops, then indeed the battery is not charged and the lamp of the car battery is lit for a reason. In this case it is necessary to check all the connection terminals on the battery and the alternator, as well as perform its additional check.

FAQ

  • What could cause the battery light to come on?

    Problems can be caused by malfunction of battery, alternator or by damaged cables of battery/alternator.

  • Can you drive a car with battery light on?

    Yes, you can. But you will be able to drive no more than 1 hour until the car stalls. So it's better to check all assemblies as fast as possible.
